Catalogue of 1884 Foo Teng Nyong Tomb Photos

Catalogue of Surviving Photos of 1884 Foo Teng Nyong Tomb, Before And After Demolition And Related Visual References Together With Descriptions And Brief Analyses

by Jeffery S. L. Seow

Straits Heritage Inquest

Sunday 14th June 2026

This photographic investigation provides a systematic forensic record of the 1884 mausoleum of Madam Foo Teng Nyong, a rare architectural masterwork of elite Cantonese style permanently dismantled in February 2022. By synthesizing geospatial data, pre-demolition architectural views, and salvage documentation from the municipal landfill, the catalogue provides a vital digital surrogate for a lost monument of maritime Southeast Asian heritage. The resulting 90-point dataset preserves the intricate engineering joinery, calculated cosmological alignments, and complex linguistic iconography that defined this unique pure-stone structure.

This researcher is greatly indebted to Mark A. Lay, from whose hands the vast majority of the images in this catalogue originate. This researcher is also indebted to Lim Gaik Siang and Clement Liang for their contributions.

I. Abstract / Executive Summary

1. Archaeological Significance

This catalogue establishes a permanent digital and analytical archive for the now-demolished 1884 mausoleum of Madam Foo Teng Nyong (Fù Shì Fūrén / 傅氏夫人). Formerly situated in the Tanjung Tokong foothills of Penang, Malaysia, this monument represented an extraordinarily rare, elite structural transplant of classical Lingnan (Yue / 粵) funerary architecture within the British Straits Settlements. Built during the peak of the 19th-century Malayan tin-mining boom, the tomb departed completely from the regional vernacular standard—predominantly grass-covered, earth-mound graves executed by the dominant Hokkien (Min / 閩) diaspora community.

Instead, it introduced a highly engineered, three-tiered, solid granite amphitheater and an above-ground interlocking crypt vault system. Following the site’s abrupt demolition in February 2022, this forensic archive—compiled systematically from unique macro-topographical surveys, pre-demolition architectural photography, site-clearing records, and subsequent salvage documentation at the Jelutong municipal landfill—stands as the definitive primary dataset and final surrogate record of an irreplaceable masterpiece of maritime Southeast Asian Chinese heritage.

[ Classical Lingnan Archetype ] -> Transplanted to 19th-Century Penang

|

v

[ The 1884 Foo Teng Nyong Mausoleum ] -> Pure Granite Terraced Construction

|

(August 2022 Total Demolition)

v

[ Forensic Digital Surrogate Archive ] -> The Definitive Academic Record

2. Typological Classification & Geomorphic Context

The architectural significance of the Foo Teng Nyong monument rests upon its rigorous preservation of high-status southern Chinese design conventions, which, from absence of any evidence we have seen, may not have been exported to the Nanyang (Southeast Asia) diaspora. Typologically, the tomb is validated by a singular historical control: Thomas and William Daniell's 1810 aquatint blueprint, "Chinese Tomb," from A Picturesque Voyage to India by Way of China. This text accompanying the illustration notes that such flat-roofed, three-tiered terraced structures were "proper only to families of distinction" within the Pearl River Delta region.

Rather than settling passively upon the existing contours of the Fettes Park/Tanjung Tokong landscape, the builders reshaped the geography. They excavated a massive semicircular recess directly into the bedrock of what the headstone epigraph identifies as the "local hill of Tua Pek Kong Street" (Dàbógōng jiē běnshān / 大伯公街本山)—while it was pointed out that this likely referred to King Street in George Town, this researcher is of opinion that it refers to Tanjong Tokong, the home of the Hai Chu Yu Tua Pek Kong Temple. This created an artificial hillside fortress that supported three precisely pitched granite-paved terraces, completely eliminating the standard grass-covered "turtle-back" earth mound (Grave Mound / Bang).

3. High-Level Geomantic & Cosmological Engineering

Forensic analysis of the central headstone shrine (Mu Bei) text reveals that the mausoleum’s physical alignment was locked into a sophisticated cosmic and environmental axis. The epigraph records the primary layout axis as 「坐艮向坤」 (Zuò Gèn Xiàng Kūn), meaning the structure sits in the Northeast (Gen) quadrant and faces directly Southwest (Kun). Because both quadrants belong strictly to the Earth element (Tǔ) in Later Heaven Bagua geomancy, the alignment achieved an elemental harmony designed to stabilize the ancestral crypt.

Furthermore, historical GIS mapping of the Fettes Park cemetery estate shows that this axis created a direct landscape connection across the valley: Madam Foo’s Southwest-facing tombstone directly confronted the Northeast-facing tombstone of her husband, the prominent tin-mining tycoon Capitan China Chung Keng Quee. This generated a unified axis of ancestral energy connecting husband and wife.

[ REAR BOUNDARY ]     --------> [ FRONT FACADE ]

艮 Gèn / Northeast 坤 Kūn / Southwest

Dipper Wood Unicorn 星 Well Wood Tapir 星

(Family Lineage Axis (Wealth Retention Basin)

The master geomancer matched this earthly orientation with precise stellar coordinates. The headstone records a calculation pinning the rear centerline to 5 degrees of the Dou (Dipper Wood Unicorn) lunar mansion, while the front facade looked toward 10 degrees of the Jing (Well Wood Tapir) lunar mansion using the True Needle (Zheng Zhen) compass ring. This mapped the burial site to stars governing family lineage tracking (the Dipper) and water/wealth management (the Well). This environmental trap was completed by a natural freshwater stream running parallel to the front balustrades, executing the classical Feng Shui law: "Mountain governs the people, water governs the wealth" (Shān guǎn rén dīng, shuǐ guǎn cái).

4. Materials Engineering & Interlocking Structural Carpentry.

The architectural remains recovered from the landfill provide direct physical data regarding the heavy engineering of the monument. Unlike ordinary diaspora graves that used brick veneers, cement or glazed tiles, this mausoleum was constructed as a heavy gravity-retaining fortress wall. It utilized solid granite ashlar blocks averaging 15 to 30 centimeters in thickness.

  [ Mortise and Tenon Stone Carpentry Joint ]

          ========================

          |  [ Tenon Tongue ]    |  <-- Upper Post Unit

          ========||==============

                  ||  <-- Iron Dowel Peg / Anchor Pin

          ========||==============

          |  [ Mortise Socket ]  |  <-- Lower Base Block

          ========================

The construction did not rely on mortar for structural stability. Salvage pieces reveal that the masons used traditional stone carpentry. They hand-carved precise mortise-and-tenon sockets and right-angle joints to lock adjacent balustrades and retaining walls together. This mechanical system was pinned with thick, square-profile iron dowels driven into pre-drilled sockets. When exposed to tropical moisture, these iron anchor pins oxidized and expanded, locking the joints against the landslide pressure of the Tanjung Tokong hill slope.

5. Iconographic Epigraph Decoding & Elite Linguistic Rebuses

The surface decorations of the mausoleum functioned as a permanent record of the family's official status, utilizing complex linguistic rebuses (Xiehouyu) native to traditional elite Lingnan artisan guilds. Salvage photography at the Jelutong landfill confirms the existence of large granite lining panels carved with the Second-Rank Imperial Civil Badge (the Golden Pheasant / Jin Ji). Positioned over deeply undercut Lishui wave patterns, this motif matched the official Qing Dynasty court insignia worn by her husband, Capitan China Chung Keng Quee, converting the wife’s final resting place into a monument of imperial validation.

[ Primary Linguistic Rebuses Carved into Granite Walls ]

------------------------------------------------------------------------------------

- Monkey in a Pine Tree branch

======>

「封侯」 (May descendants become Marquises)

- Stag on the forest floor

======>

「祿」   (Official salary and high fortune)

- Crane under pine canopy

======>

「松鶴長春」 (Resilience and eternal life)

- Upside-down bat linked to coin

======>

「福在眼前」 (Blessings right before your eyes)

------------------------------------------------------------------------------------

Genealogically, the central headstone epigraph establishes her high status as 「夫人」 (Fūrén / Noble Titled Lady) and records her posthumous honorifics as 「愨慈」 (Què Cí / Honest and Merciful). Her birth in the Daoguang 29th year (1849) and her death in the Guangxu 9th year (1883) provide clear timelines for 19th-century Straits Chinese history. The presence of a separate Hòutǔ (后土) shrine stone reading 「鄭宅后土」 confirms the layout included a dedicated companion god tablet, serving as the legal and spiritual lease for the hillside estate.

6. Heritage Destruction & Forensic Methodological Value

The complete clearance of the tomb at the Tanjung Tokong foothills in February 2022 and the subsequent dumping of its granite monoliths at the Jelutong landfill represent a significant loss to global Chinese diaspora heritage. Because no official architectural surveys, measured drawings, or government preservation records were made before the site was cleared, this 90-point photographic database stands as the single remaining forensic record of the structure. This assertion is based on the documented fact that while there were numerous calls—made publicly in the newspapers—to release the documentation that was alleged to have been carried out, from 28th August 2022 till the present time (2026) nothing has been observed.

 [ RAW PHOTOGRAPHIC DATASETS ]

  - Contextual Maps & Charts (Misc)

  - Intact Structural Panels (Pre)

  - Landfill Forensic Ruins (Post)

                             |

                             V

[ ARCHIVAL FORENSIC SYNTHESIS ]

 - Reconstructs Engineering Carpentry

 - Translates Astrological Epigraphs

 - Restores Lost Lingnan Art Programs

                             |

                             v

[ DEFINITIVE SURROGATE DIGITAL ARCHIVE ]

By organizing this data into an itemized inventory table, this catalogue performs a process of digital salvage archaeology. It connects separate rubble blocks to their original places on the three-tiered platforms, proving the value of photographic documentation when physical monuments are lost. As far as is possible, this completed archive preserves the technical details of the 1884 Foo Teng Nyong mausoleum, making its layout, engineering, and cultural records permanently accessible to global historical scholarship.

II. Inventory of this Catalogue of Foo Teng Nyong Tomb Reference Photos

1. Miscellaneous & Contextual Reference Records

Misc 01: The Grave Shoulder / Wenchang Scroll Finial Evolution

• Inventory Code / Filename: Misc 01

• Chronological Phase: Spliced Analysis Record (Pre-Demolition vs. Landfill Salvage)

• Anatomical / Structural Component: Right-Wing Terminating Boundary Post (Grave Shoulder / 墓肩 / Wenchang Scroll)

• Descriptive Forensic Analysis: The top panel (Pre-Demolition) captures the intact, terraced outer boundary wall ending in a tightly coiled, multi-layered stone scroll finial (highlighted in red). The bottom panel shows the exact same architectural element sitting upside down at the Jelutong landfill. The stone remains physically whole, showing a circular, shell-like scroll form that extends into a solid cylindrical insertion peg designed to pin the unit into the lower terrace foundation block.

• Iconography & Symbolism: Known as Wenchang scrolls or "Grave Shoulders," these elements marked the outer limits of Cantonese tombs. Their coiled shape represents water currents turning inward, designed to block negative winds (Feng) and trap ambient energy within the courtyard floor.

Misc 02: Satellite Landscape Axis Mapping

• Inventory Code / Filename: Misc 02

• Chronological Phase: Context Record

• Anatomical / Structural Component: Macro Landscape Axis Grid (Fettes Park / Tanjung Tokong)

• Descriptive Forensic Analysis: Annotated satellite map tracking the spatial relationship between the family burials. Yellow vector lines trace the directional gaze of the headstones.

• Iconography & Symbolism: Documents a deliberate layout where Madam Foo's tomb and Capitan China Chung Keng Quee's tomb face each other along a single axis. This alignment reflects high-level landscape planning, pairing her Southwest orientation with his Northeast orientation to create a shared ancestral connection across the valley.

Misc 03 & 04: Portrait of Capitan China Chung Keng Quee & Rank Badge Detail

• Inventory Code / Filename: Misc 03 & Misc 04 (Detail Zoom)

• Chronological Phase: Historical Iconology Reference

• Anatomical / Structural Component: Imperial Qing Dynasty Court Rank Badge (Buzi / 補子)

• Descriptive Forensic Analysis: A historical monochrome portrait of Capitan China Chung Keng Quee dressed in formal Qing bureaucratic robes. The red circle isolates his split front court insignia panel. The bird features long, straight, parallel-ribbed tail feathers, matching the anatomy of the golden pheasant.

• Iconography & Symbolism: This badge provides direct evidence of his rank as a Civil Official of the Second Rank. Comparing this historical textile badge with the heavy granite carvings saved from the landfill reveals that the family deliberately carved his official rank badge onto his wife's tomb walls, turning the site into a permanent monument of imperial validation.

Misc 05: Later Heaven Bagua Alignment Diagram

• Inventory Code / Filename: Misc 05

• Chronological Phase: Geomantic Blueprint Map

• Anatomical / Structural Component: Axial Alignment Map

• Descriptive Forensic Analysis: Bagua chart with a blue vector arrow highlighting the Northeast-to-Southwest corridor.

• Iconography & Symbolism: This chart illustrates the spatial relationship shown in Misc 02. It maps the 「坐艮向坤」 (Sit Northeast, Face Southwest) calculation inscribed on Madam Foo's stone, which directly mirrors her husband's layout to lock the couple into a balanced geomantic axis.

Accompanying Text:

CHINESE TOMB.

THE Chinese are remarkable for their tenderness to their dead, and evince the strongest attachment to the tombs of their ancestors. Custom, which reconciles them to the exposure of a helpless infant, revolts at the appearance of rudeness or neglect to an unconscious corpse. It is not uncommon for persons in affluence to procure magnificent coffins for their future remains: those appropriated to the higher classes are made of the most precious wood, pitched within, and varnished without, to prevent the emission of noxious effluvia. The body is carefully embalmed ; and when finally removed to the family sepulchre, receives daily visits and prostrations from the affectionate relatives, ‘The Chinese monuments are constructed of stone, and sometimes consist merely of a column either square, circular, or triangular, erected in a grove of cypress trees. The mausoleum exhibited in the plate is such as is proper only to families of distinction: it is detached from the mansion, and formed of three terraces, one over the other : on the uppermost of them is placed the door of the sepulchre. The same sentiment of reverence for the dead prevails in the lower orders: the poor man’s coffin is made of coarse materials, and deposited in a little bed of earth, over which are planted dwarf trees, which it is the business of the survivors to keep clear of weeds. The sequestered spot is often visited with emotions of tenderness; and when no kinsman remains to trim the humble mound, its sanctity is still acknowledged and respected by the stranger, who may chance to direct his steps towards the nameless grave.

A Picturesque Voyage to India by Way of China, 1810, pdf pages 55 & 56.

Misc 06: The 1810 Daniell Aquatint

• Inventory Code / Filename: Misc 06

• Chronological Phase: Historical Typology Blueprint

• Anatomical / Structural Component: Comparative Architectural Print ("Chinese Tomb", Daniell, 1810)

• Descriptive Forensic Analysis: A high-resolution scan of Thomas and William Daniell's 1810 plate from A Picturesque Voyage to India by Way of China. It illustrates a high-status three-tiered terraced mausoleum cut straight into a hillside with a flat, paved stone platform and an open, recessed portal leading into the mountain chamber.

• Iconography & Symbolism: This image serves as the primary historical control for the study. It proves that the flat-roofed, terraced, "non-turtle-back" design was an established architectural type reserved for elite families in the Guangdong/Hong Kong region, confirming the tomb's rare status in Southeast Asia.

2. Pre-Demolition Phase

Pre 01: Frontal Elevation Overview

• Inventory Code / Filename: Pre 01

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Macro Semicircular Court Assembly (Mingtang and Retaining Wings)

• Descriptive Forensic Analysis: Eye-level frontal baseline view establishing the structural footprint of the mausoleum. The photo captures the multi-layered stone terracing cutting back into the vegetated hill slope, bounded by a curved rear retaining wall. The foreground shows dense tropical overgrowth encroaching upon the lower paved courtyard basin (Mingtang).

• Iconography & Symbolism: Illustrates the classical "Armchair" or horseshoe layout (Luoxuan). This structure acts as a physical protective wrap, securing the burial site from weather-related erosion while concentrating environmental energy in front of the headstone.

Pre 02: High-Angle Aerial Downview

• Inventory Code / Filename: Pre 02

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Flat Granite Paving Platforms & Intermediate Terraces

• Descriptive Forensic Analysis: High-angle perspective from the upper rear crest looking down across the structure. This view clearly documents the complete absence of an organic earth mound (Grave Mound), showing instead a continuous, stepped platform paved with interlocking granite slabs. Low perimeter balustrades frame the terrace edges.

• Iconography & Symbolism: Confirms the rare, pure-stone Lingnan terraced form. The flat granite slabs serve a double purpose, functioning as the finished courtyard floor and the heavy, protective stone ceilings over the burial vault chambers beneath.

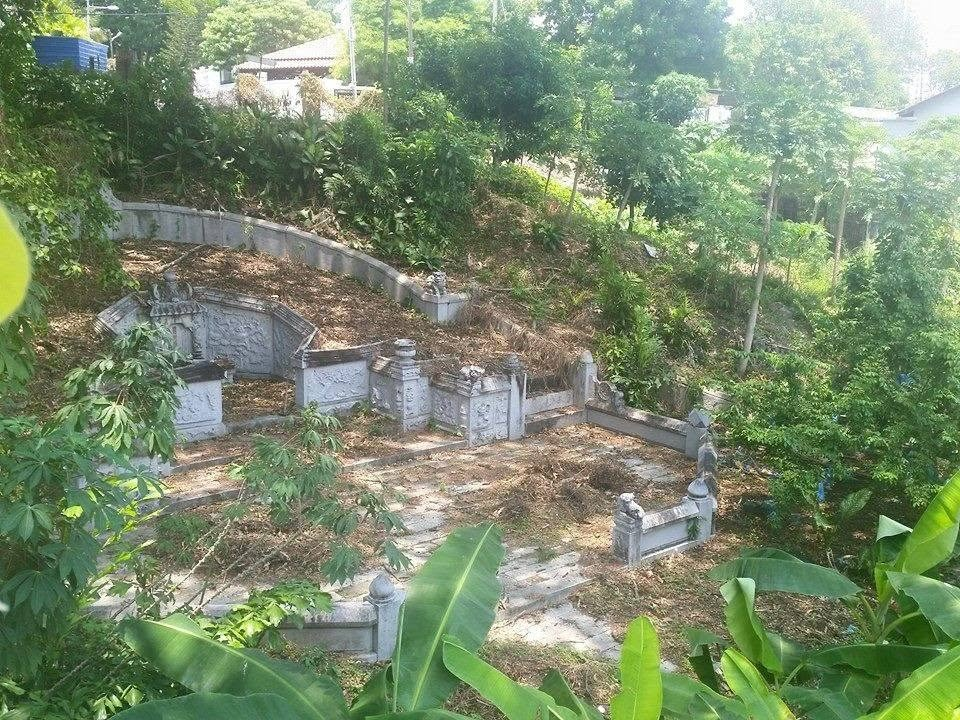

Pre 03: Three-Quarter Elevated Landscape Perspective

• Inventory Code / Filename: Pre 03

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Lateral Step-Wings and Multi-Tiered Retaining System

• Descriptive Forensic Analysis: High-angle 3/4 perspective showing the right side-wings and the terraced floor levels. The photograph captures how the rear retaining wall tapers down into a series of stepped, angular stone blocks that stabilize the excavated hillside.

• Iconography & Symbolism: Highlights the scale of the earthworks. The multi-tiered layout channels the slope's structural load, while the stepped outer wings manage rainwater runoff to keep the internal crypt area dry.

Pre 04: Side-Angle Drainage and Balustrade Profile

• Inventory Code / Filename: Pre 04

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Intermediate Courtyard Flanks and Perimeter Balustrades

• Descriptive Forensic Analysis: Mid-angle lateral view focusing on the right stepped wing and the low stone balustrades. It shows the precise, interlocking joints of the granite blocks and the subtle downward slope built into the paved tiers to guide water runoff.

• Iconography & Symbolism: Documents the stone engineering layout. The angled balustrades act as physical borders that trace the flow of water down toward the front catchment basin (Mingtang), retaining wealth energy before it exits the site.

Pre 05: Central Headstone Shrine Assembly with Scale Reference

• Inventory Code / Filename: Pre 05

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Central Headstone Shrine (Mu Bei), Altar Table (Gong Zhuo), and Retaining Reliefe Slabs

• Descriptive Forensic Analysis: Frontal close-up shot providing a human scale reference next to the central tombstone shrine. The headstone is set inside an architectural stone frame topped with a mock tile roof and flanked by deeply carved dragon pillars. The curved inner walls are lined with large, detailed narrative relief panels.

• Iconography & Symbolism: The central assembly mimics an elite temple entrance or ancestral hall facade. This design transforms the tomb entry into a ceremonial gateway, marking the crossing point between the living world and the ancestral realm.

Pre 06: Close-Up of Left Retaining Wall Panel and Shrine Frame

• Inventory Code / Filename: Pre 06

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Left Inner Retaining Wall Panel and Flanking Dragon Pillar

• Descriptive Forensic Analysis: Focused close-up of the left quadrant of the shrine assembly. It documents the intricate, deep-relief carving on the inner wall panel and the crisp, high-relief execution of the coiled dragon wrap on the structural pillar. A stone guardian lion sits on the altar ledge below.

• Iconography & Symbolism: The deep-relief panels display traditional narrative scenes and auspicious creatures, while the coiled dragon pillars project imperial-level prestige, reflecting the family's high social standing.

Pre 07: Telephoto Headstone Inscription Facade

• Inventory Code / Filename: Pre 07

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Primary Inscription Face and Altar Furniture

• Descriptive Forensic Analysis: Telephoto view centering on the granite headstone tablet. The three main vertical columns of traditional text are highlighted with red pigment. A ceramic incense burner sits in the center of the altar table, flanked by low stone guardian blocks.

• Iconography & Symbolism: The tablet serves as the legal and genealogical record of the tomb, detailing her lineage, posthumous honors, and the names of the descendants responsible for erecting the monument.

Pre 08: Macro Headstone Epigraph Detail

• Inventory Code / Filename: Pre 08

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Headstone Tablet Face (Mu Bei)

• Descriptive Forensic Analysis: Crisp macro photograph documenting the complete central, left, and partial right columns of the inscription. The text is deeply cut into the granite face, preserving her titles, the erection date (Guangxu 10th Year / 1884), and the names of her sons and daughters.

• Iconography & Symbolism: The text records her formal title as 「夫人」 (Noble Lady) and her posthumous honorifics 「愨慈」 (Honest and Merciful), cementing her high status within the matriarchal line of the Chung family.

Pre 09: Right-Column Geomantic Inscription Detail

• Inventory Code / Filename: Pre 09

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Right Epigraph Column

• Descriptive Forensic Analysis: Segmented macro crop isolating the entire right-hand column of the headstone text. The characters are cleanly cut and filled with red pigment, recording her birth and death years alongside precise compass coordinates.

• Iconography & Symbolism: Preserves the crucial geomantic data: 「坐艮向坤」 (Sit Northeast, Face Southwest), aligned with the Dou (Dipper) and Jing (Well) lunar mansions using the True Needle (Zheng Zhen) calculation to link the crypt with cosmic and environmental energy.

Pre 10: Symmetrical Fisheye Panoramic Panorama

• Inventory Code / Filename: Pre 10

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Macro Frontal Panoramic Facade

• Descriptive Forensic Analysis: Wide-angle panoramic view capturing the complete symmetrical layout of the mausoleum from the front edge. It clearly illustrates the three descending terraces, the wide flair of the outer retaining walls, and the alignment of the boundary posts and guardian lions.

• Iconography & Symbolism: Highlights the grand scale of the monument. The wide, outward-flaring arms shape the lower courtyard basin (Mingtang), designed to slow down surface drainage and symbolically hold wealth energy within the family estate.

Pre 11: Frontal Elevation with Encroaching Tropical Vegetation

• Inventory Code / Filename: Pre 11

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Main Retaining Wall Assemblies, Flanking Wings, and Altar Terrace

• Descriptive Forensic Analysis: Frontal baseline view documenting severe tropical overgrowth covering the tomb. Vines and wild vegetation drape across the upper stone terraces and run down the sides of the horseshoe wings. Despite the plant growth, the primary stone structure remains sound and vertical.

• Iconography & Symbolism: Illustrates how the stone monument held its structural shape against nature. The heavy granite walls prevented the surrounding soil from sliding down, keeping the core courtyard area stable despite years of neglect.

Pre 12: Frontal Close-Up of the Headstone Shrine Facade

• Inventory Code / Filename: Pre 12

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Central Headstone Shrine Frame (Mu Bei) and Offering Table

• Descriptive Forensic Analysis: Close-up shot capturing the deep architectural details of the central shrine. The framing replicates a miniature temple entrance, featuring a double-tiered stone tile roof and columns wrapped with high-relief dragons. A circular, tripod stone incense burner sits in the center of the offering table, accompanied by a small guardian lion figure on the left corner.

• Iconography & Symbolism: The architectural frame elevates the grave tablet into an ancestral hall gateway. The coiled dragons and stone guardian symbols protect the sacred portal, marking the threshold where descendants pay respects to the matriarch.

Pre 13: High-Angle View of a Community Heritage Gathering

• Inventory Code / Filename: Pre 13

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Paved Courtyard Basin (Mingtang) and Intermediate Terrace Step

• Descriptive Forensic Analysis: High-angle shot showing a group of heritage researchers and community members gathered inside the main courtyard. The photo clearly documents the flat, interlocking granite paving slabs of the courtyard floor and the sharp, geometric angles of the intermediate terrace wall that wraps around the visitors.

• Iconography & Symbolism: Demonstrates the large scale and social function of the monument. The wide open court was designed to host multi-generational family gatherings during the annual Qingming festival, providing ample space for descendants to stand together.

Pre 14: Overhead Forensic Examination of the Shrine and Wall Inscriptions

• Inventory Code / Filename: Pre 14

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Central Shrine Recess and Left Retaining Wall Panel

• Descriptive Forensic Analysis: Downward perspective capturing researchers documenting the central headstone inscriptions and the adjoining left wall panel. This angle highlights the deep recess of the central shrine cavity and the continuous layout of the narrative relief panels that line the inner walls.

• Iconography & Symbolism: Shows the field documentation process before the site's demolition. The position of the researchers underscores the historical value of the carved panels, which contain detailed genealogical and cultural records.

Pre 15: Rear View of the Courtyard and Stepped Balustrades

• Inventory Code / Filename: Pre 15

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Upper Terrace Paving and Curved Intermediate Balustrades

• Descriptive Forensic Analysis: View from the right-hand step looking across the lower paved terrace toward the opposite side. The photo shows the crisp lines of the stepped granite balustrades and the uniform layout of the pavement blocks that pitch slightly downward to guide water runoff.

• Iconography & Symbolism: Documents the advanced water drainage setup. The stepped stone walls function as a structural frame that guides heavy rainwater down into the lower catchment basin, protecting the underground crypt channels.

Pre 16: Telephoto Close-Up of the Right Retaining Wall Panel

• Inventory Code / Filename: Pre 16

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Right Inner Retaining Wall Panel (Landscape Triad Field)

• Descriptive Forensic Analysis: Telephoto detail shot isolating the right narrative relief slab. The carving is executed in deep relief with significant undercutting, displaying a landscape scene filled with gnarled tree trunks, leaves, and animal figures.

• Iconography & Symbolism: Documents the classical "Three Friends & Auspicious Beasts" triad. The deep carving style creates strong shadow lines that make the deer, crane, and pine tree motifs stand out, conveying wishes for long life, status, and family fortune.

Pre 17: Telephoto Close-Up of the Left Retaining Wall Panel

• Inventory Code / Filename: Pre 17

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Left Inner Retaining Wall Panel (Mythical Narrative Field)

• Descriptive Forensic Analysis: Focused telephoto view isolating the relief carvings on the left inner retaining wall. The granite face shows deeply cut, swirling clouds and wave lines wrapping around a central dynamic creature figure.

• Iconography & Symbolism: Features auspicious water and sky symbols designed to mirror the right side's land theme. In Lingnan folk art, these dynamic patterns represent the transition between the earthly world and the spiritual realm, bringing protective energy to the tomb.

Pre 18: Close-Up of the Left Retaining Wall Panel with Overgrowth

• Inventory Code / Filename: Pre 18

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Left Retaining Wall Panel, Left Dragon Pillar, and Altar Corner

• Descriptive Forensic Analysis: Close-up view showing the left side of the central shrine. Wild vines hang down across the detailed wave patterns of the left retaining wall panel. A stone guardian lion sits on the granite offering platform in the lower right foreground.

• Iconography & Symbolism: Illustrates the relationship between the carved wall panel and the central shrine framework. The deep-relief wave designs create a rich texture that frames the central tombstone, highlighting the artistic craftsmanship of the site.

Pre 19: High-Contrast Detail of the Left Retaining Wall Panel

• Inventory Code / Filename: Pre 19

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Left Inner Retaining Wall Panel (Wave and Dragon-Carp Field)

• Descriptive Forensic Analysis: Cropped high-contrast view of the left retaining wall panel under bright sunlight. The light creates strong shadows across the deeply undercut Lishui waves and swirling cloud patterns, revealing the chisel work of the stonemasons.

• Iconography & Symbolism: Showcases the high-level Sun Diao (hollowed-out relief) technique. This elaborate style of stone cladding was reserved for elite families, turning a structural retaining wall into a permanent showcase of wealth and status.

Pre 20: Intact View of the Right Retaining Wall Panel and Shrine Frame

• Inventory Code / Filename: Pre 20

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Right Inner Retaining Wall Panel and Central Shrine Profile

• Descriptive Forensic Analysis: Clear view of the right side of the tomb, showing the right panel next to the central shrine frame. The carving displays a standing crane, a deer on the forest floor, and an upside-down monkey hanging from a pine branch. Green ivy runs along the joint line between the stones.

• Iconography & Symbolism: Displays a complete set of traditional visual puns (Xiehouyu). The monkey hanging from the pine tree branch forms the pun 「封侯」 (Fēng Hóu), wishing that the matriarch's descendants would achieve high official rank and noble status in society.

Pre 21: Full-Panel View of the Intact Right Retaining Wall

• Inventory Code / Filename: Pre 21

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Right Inner Retaining Wall Panel and Flanking Dragon Column Base

• Descriptive Forensic Analysis: Eye-level close-up documenting the full layout of the main right-hand narrative slab before demolition. The carving shows deep undercutting and layered relief textures that separate the background trees from the animal figures in the foreground. Patches of green ivy run along the upper masonry joint lines.

• Iconography & Symbolism: Displays the complete Landscape Triad of the crane, the pine, and the forest stag, combined with the "Feng Hou" (封侯) monkey rebus hanging from the upper branch. This group forms a continuous set of prayers wishing for political success, official salary, and long life for the family.

Pre 22: Detailed View of an Inner Altar Guardian Lion

• Inventory Code / Filename: Pre 22

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Altar Platform Guardian Lion (Left Corner)

• Descriptive Forensic Analysis: Top-down macro photograph focusing on the small stone guardian lion positioned on the left side of the primary sacrifice ledge. The granite surface shows weathering and natural lichen growth, but the details of the stylized mane and paws remain clear.

• Iconography & Symbolism: Functions as a spiritual protector for the central headstone shrine. Placed next to the incense burner, this lion guards the core offering area, keeping chaotic or negative energy away from the sacred family records.

Pre 23: Intact View of a Coiled Dragon-Carp Medallion

• Inventory Code / Filename: Pre 23

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Lower Terrace Wall Medallion (Li Yu Panel)

• Descriptive Forensic Analysis: Close-up shot showing a circular bas-relief panel set into the outer boundary walls, surrounded by creeping weeds. The carving depicts a scaled water creature coiled inside a circular frame, with wavy line textures representing water currents.

• Iconography & Symbolism: Represents the Water Carp (鯉魚 - Lǐyú) transforming into a dragon as it swims upstream. In Lingnan architecture, this emblem stands for perseverance, family advancement, and continuous abundance (Nian Nian You Yu), aligning with the family's business success.

Pre 24: Close-Up of a Lower Boundary Gate Post and Finial

• Inventory Code / Filename: Pre 24

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Lower Balustrade Terminating Post and Lion Finial

• Descriptive Forensic Analysis: Mid-angle shot tracking a vertical boundary post along the lower courtyard edge. The square base block features weathered surfaces, shifting up into a carved middle column topped with a small, stylized stone guardian lion facing outward.

• Iconography & Symbolism: Marks the outer entry point of the tomb's horseshoe arms. These posts define the boundaries of the sacred space, blocking external environmental winds while keeping positive energy inside the courtyard.

Pre 25: Overview of the Step-Wing Balustrade Layout

• Inventory Code / Filename: Pre 25

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Right Step-Wing Balustrade Wall and Boundary Post

• Descriptive Forensic Analysis: Lateral view showing the stepped outer wings of the tomb. The stone wall features carved vertical border lines enclosing a low-relief narrative scene. A seated stone guardian lion sits on the top corner post, silhouetted against the green hillside.

• Iconography & Symbolism: Illustrates the structured, geometric design of Cantonese tomb wings. The stepped layout creates a clear boundary that secures the hillside while providing a decorative frame for the tomb's outer edges.

Pre 26: Macro Detail of the Outer Step-Wing Relief Panel

• Inventory Code / Filename: Pre 26

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Outer Step-Wing Relief Slab

• Descriptive Forensic Analysis: Sharp macro photograph focusing on the relief carving on the outer balustrade wall shown in Pre 25. The panel depicts an animal with distinctive spots or scales climbing down a gnarled tree trunk, surrounded by low-relief leaf patterns.

• Iconography & Symbolism: Extends the auspicious animal stories to the outer walls of the tomb. These folk-art carvings add more layer of protection and blessing to the site, ensuring every visible stone surface contributes to the family's legacy.

Pre 27: Elevated Perspective of the Lower Balustrade and Peach Finial

• Inventory Code / Filename: Pre 27

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Lower Terrace Balustrade Railing and Terminating Caps

• Descriptive Forensic Analysis: Three-quarter downview tracking a lower balustrade wall segment. The left corner post is capped with an outward-facing stone lion, while the right corner post terminates in a smooth, tapered stone finial resembling a lotus bud or longevity peach.

• Iconography & Symbolism: Shows the alternation of guardian symbols and life emblems along the boundary lines. The peach/lotus bud shape represents purity and eternal memory, sealing the outer edges of the courtyard.

Pre 28: Wide Perspective of the Main Retaining Complex

• Inventory Code / Filename: Pre 28

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Complete Multi-Tiered Terraced Facade and Courtyard

• Descriptive Forensic Analysis: Crisp wide-angle view capturing the entire three-tiered amphitheater layout without overgrowth. This angle shows the relationship between the flat granite floors, the inner relief walls, the central shrine, and the high rear retaining wall topped with a central stone crown panel. Heritage visitors walk along the upper crest for scale.

• Iconography & Symbolism: Confirms the pure Lingnan terraced style. The wide, symmetrical layout creates a large, stone-enclosed space designed to trap beneficial landscape energy, showing the high social status of the family line.

Pre 29: Clear Frontal View of the Central Shrine and Flanking Reliefs

• Inventory Code / Filename: Pre 29

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Central Shrine Assembly and Mirror Retaining Slabs

• Descriptive Forensic Analysis: Frontal eye-level view documenting the central shrine and both inner retaining walls free of vegetation. This perspective highlights the symmetry of the design, with the wave-themed left panel perfectly balancing the land-themed right panel on either side of the headstone.

• Iconography & Symbolism: The central assembly acts as a formal ceremonial gate. The balanced placement of land and water motifs surrounding the matriarch's name reflects the harmony of the universe, anchoring the ancestral lineage in a position of ultimate honor.

Pre 30: Close-Up of the Rear Retaining Wall Crown Panel

• Inventory Code / Filename: Pre 30

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Upper Rear Wall Crown Panel (Hou Shan Emblem)

• Descriptive Forensic Analysis: Low-angle close-up focusing on the stone panel mounted at the center top of the high rear retaining wall. The panel features a lower rectangular slab carved with two birds facing a central sun medallion, topped with a cloud-shaped stone crown accented with a large red circle.

• Iconography & Symbolism: Positioned at the highest point of the tomb, this crown panel represents heaven and imperial validation. The paired birds facing the sun emblem resemble the high-ranking motifs used by the Qing court, serving as the ultimate crown of honor for the family mausoleum.

Pre 31: Rear Retaining Wall Crown Panel (Detailed Elevation)

• Inventory Code / Filename: Pre 31

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Upper Rear Wall Central Accent Panel (Hou Shan Emblem)

• Descriptive Forensic Analysis: Detailed macro photograph of the square-inset granite relief panel embedded along the centerline of the rear perimeter wall. The composition captures two stylized birds rendered in crisp, mirrored low-relief profile, facing a central sun disc medallion framed by scrolling Ruyi clouds. A wrapped scholar's scroll or imperial decree is positioned between their beaks.

• Iconography & Symbolism: This represents a variation of the imperial bureaucratic theme, symbolizing continuous upward mobility and imperial favor. The birds facing the sun element reflect high status, positioning the matriarch's resting place under the protective gaze of cosmic light and bureaucratic merit.

Pre 32: Rear Retaining Wall Crown Assembly (Contextual View)

• Inventory Code / Filename: Pre 32

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Rear Boundary Wall Centerpiece and Crest Assembly

• Descriptive Forensic Analysis: Contextual frame documenting how the square bird-medallion panel (Pre 31) links structurally with the cloud-carved stone crown resting directly above it. The flat granite paving of the upper tier leads directly to the base of this masonry course, while the dense natural vegetation of the Tanjung Tokong hill slope rises immediately behind it.

• Iconography & Symbolism: Shows the structural transition from the tomb's engineered stone platform to the natural landscape. This focal point anchors the rear axis (Sit position), serving as the physical crown that receives and stabilizes mountain energy before it flows down across the lower terraces.

Pre 33: Macro Detail of the Rear Wall Cloud Crown Finial

• Inventory Code / Filename: Pre 33

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Rear Wall Crest Finial

• Descriptive Forensic Analysis: Sharp macro view isolating the top cloud-shaped granite crest. The carving displays smooth, deeply channeled concentric wave lines that form stylized Ruyi or mushroom cloud formations. A perfectly circular medallion painted in bold red pigment sits at the absolute highest center apex.

• Iconography & Symbolism: The red circular medallion symbolizes the sun or a flaming pearl (Baozhu), representing ultimate purity, cosmic authority, and spiritual light. Carving it from solid granite at the peak of the rear wall acts as a spiritual beacon, marking the highest point of honor within the terraced design.

Pre 34: Continuous Low-Relief Balustrade Narrative Panel

• Inventory Code / Filename: Pre 34

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Lower Terrace Retaining Wall Frieze

• Descriptive Forensic Analysis: Linear close-up documenting a long, rectangular frieze panel set horizontally into a lower terrace retaining wall block. The granite panel is carved with four distinct mythological or historical figures riding various auspicious chimerical beasts (including a Qilin and a horse) across a continuous background of deeply undercut scrolling clouds.

• Iconography & Symbolism: Likely represents the Daoist Immortals or legendary figures traveling across the heavens. In Southern Chinese tomb art, these narrative friezes represent protection on the spiritual journey and remind living descendants of historical and cultural virtues.

Pre 35: Standing Immortal/Scholar Pillar Relief

• Inventory Code / Filename: Pre 35

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Vertical Balustrade Pillar Face

• Descriptive Forensic Analysis: Vertical macro photograph isolating the inner face of a boundary balustrade post. Encased within a distinct rectangular stone frame is a low-relief carving of a standing male figure in traditional flowing scholar-bureaucrat robes, holding an auspicious ruyi scepter or staff, topped with a geometric key-fret border course.

• Iconography & Symbolism: Represents an official or guardian figure offering blessings. This figure serves as a permanent spiritual attendant for the tomb, reinforcing the theme of high-ranking status and scholarly achievement within the family branch.

Pre 36: Tiered Octagonal Post and Multi-Layered Joinery Column

• Inventory Code / Filename: Pre 36

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Intermediate Terrace Transition Pillar and Wall Flank

• Descriptive Forensic Analysis: High-contrast vertical view of an elaborate transition pillar where two terrace levels meet. The post features a complex multi-part design: an octagonal top cup basin, shifting down to a ribbed body, resting on a block carved with low-relief flower vases. The adjoining side panel features a vertical alignment of a bat, a coin, and a protective tiger mask.

• Iconography & Symbolism: Serves as a prime example of Cantonese stone joinery and decorative complexity. The flower vase (Ping'an / 平安) symbolizes peace and safety, while the bat and coin line reinforces the "Blessings Before Your Eyes" rebus, ensuring every joint in the stone masonry carries protective meaning.

Pre 37: High-Contrast Close-Up of the Right Retaining Wall Monkey Panel

• Inventory Code / Filename: Pre 37

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Right Inner Retaining Wall Rebus Slab (Detail)

• Descriptive Forensic Analysis: Clear, clean macro view of the monkey motif shown in Pre 21 and Pre 26, captured under flat light. The chisel marks around the monkey's limbs, tail, and facial features show the deep relief carving process, capturing the animal climbing down a stylized pine trunk to interact with a lower object.

• Iconography & Symbolism: Isolates the "Feng Hou" (封侯) Marquis rebus. The clarity of this shot provides an excellent forensic record of the stonemason's technique, documenting how folk-art animal forms were integrated directly into the structural retaining walls to convey blessings for the family line.

Pre 38: Macro View of the Left-Wing Wenchang Scroll Finial

• Inventory Code / Filename: Pre 38

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Left-Wing Terminating Wall Finial (Grave Shoulder / Wenchang Scroll)

• Descriptive Forensic Analysis: Three-quarter close-up focusing on the massive stone-sculpted scroll finial capping the lowest point of the left horseshoe wall. The granite is carved into a geometric, spiraling step cone that looks like a coiled shell or stepped pyramid, rising cleanly from a solid square foundation base block.

• Iconography & Symbolism: This is the counterpart to the right scroll shown in Misc 01. Known as a Wenchang scroll or "Grave Shoulder" (墓肩), its heavy, spiraling shape is designed to block external environmental currents, wrapping around the lower courtyard edge to keep beneficial energy inside the site.

Pre 39: Detailed View of a Tapered Lotus Bud Balustrade Cap

• Inventory Code / Filename: Pre 39

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Intermediate Balustrade Post Cap Finial

• Descriptive Forensic Analysis: Close-up tracking a terminal post cap shaped like a tapered seed pod. The granite face features curved vertical grooves that resemble overlapping lotus petals or the segments of a longevity peach, rising to a clean point against the background greenery.

• Iconography & Symbolism: Represents the Lotus Bud / Longevity Peach hybrid motif. Placed along the intermediate terrace railings, these finials seal the edges of the stone walls, adding symbols of purity, long life, and continuous remembrance to the boundary line.

Pre 40: Geometric Polyhedral Post Cap Finial

• Inventory Code / Filename: Pre 40

• Chronological Phase: Pre-Demolition

• Anatomical / Structural Component: Outer Boundary Railing Accent Post

• Descriptive Forensic Analysis: Top-down close-up capturing a unique geometric post cap finial cut into a clean, multi-faceted polyhedral shape. The granite surfaces are flat and sharp, meeting at precise angular edges that contrast with the organic animal and plant reliefs found elsewhere on the tomb.

• Iconography & Symbolism: Represents a rare use of sharp geometric design in traditional Chinese tomb finials. These faceted caps add a modern, architectural structure to the lower boundary walls, showcasing the varied skills of the Cantonese stonemasons who built the site.

3. Post-Demolition Phase

Post 01: Initial Structural Fracture at Grave Site

• Inventory Code / Filename: Post 01

• Chronological Phase: Post-Demolition (Grave Site)

• Anatomical / Structural Component: Upper Retaining Structure and Core Courtyard Platform

• Descriptive Forensic Analysis: Photographed through a green chain-link perimeter fence, this image documents the structural fracturing of the mausoleum. A yellow excavator works in the background, surrounded by piles of broken granite slabs, structural posts, and carved stone blocks. The original three-tiered layout has been completely broken apart.

• Iconography & Symbolism: Records the physical destruction of the monument. This image shows how the interlocking granite masonry was dismantled, converting the engineered stone platform back into a pile of loose stone.

Post 02: Landscape Leveling and Stream Clearance at Grave Site

• Inventory Code / Filename: Post 02

• Chronological Phase: Post-Demolition (Grave Site)

• Anatomical / Structural Component: Macro Landscape Footprint and Front Water Course

• Descriptive Forensic Analysis: Wide-angle view showing the cleared hillside, with an orange excavator parked on a newly leveled dirt tier. In the foreground, the natural freshwater stream runs along the base of the valley. The original stone terraces, balustrades, and retaining walls have been completely removed, leaving bare earth behind.

• Iconography & Symbolism: Documents the permanent loss of the tomb's Feng Shui landscape layout. While the stream remains, the removal of the terraced stone walls broke the calculated axis that had anchored the burial site within the Tanjung Tokong foothills.

Post 03: Longitudinal Topographical Clearance Profile

• Inventory Code / Filename: Post 03

• Chronological Phase: Post-Demolition (Grave Site)

• Anatomical / Structural Component: Macro Hillside Slopes and Retaining Boundaries

• Descriptive Forensic Analysis: Longitudinal perspective looking across the cleared hillside toward the surrounding residential developments and high-rise apartments. The image captures the full size of the excavation, where the three-tiered amphitheater has been completely graded into a single, continuous slope of bare clay and loose soil.

• Iconography & Symbolism: Highlights the complete clearance of the historic site. This documentation captures the bare landscape context, illustrating how the space was prepared for modern urban development after the monument was removed.

Post 04: Piled Granite Foundations at Grave Site

• Inventory Code / Filename: Post 04

• Chronological Phase: Post-Demolition (Grave Site)

• Anatomical / Structural Component: Subterranean Vault Fill and Unrefined Backing Stone

• Descriptive Forensic Analysis: Close-up view of a large pile of fragmented, unrefined stones stacked near a corrugated metal fence on the cleared site. These rough pieces contrast with the smooth, dressed granite slabs used on the visible surfaces of the tomb.

• Iconography & Symbolism: Provides physical evidence of the tomb's hidden foundation materials. These rough stones were used as the internal fill and structural backing behind the finished granite panels, helping to lock the terraced platforms into the clay hillside.

Post 05: Panoramic Overview of the Cleared Slope

• Inventory Code / Filename: Post 05

• Chronological Phase: Post-Demolition (Grave Site)

• Anatomical / Structural Component: Semicircular Earthworks Footprint

• Descriptive Forensic Analysis: Wide-angle panoramic view from the upper crest of the property looking down across the cleared site. The photograph records the bare earth layout, the position of the rock pile (Post 04), and the excavator working on the lower tier near the valley stream.

• Iconography & Symbolism: Captures the final phase of site clearance. This view documents the absolute removal of the historic monument, leaving only a graded dirt slope where the complex stone mausoleum once stood.

Post 06: Granite Core Fragmentation and Salvage Excavation

• Inventory Code / Filename: Post 06

• Chronological Phase: Post-Demolition (Grave Site)

• Anatomical / Structural Component: Central Shrine Framework and Retaining Reliefe Slabs

• Descriptive Forensic Analysis: Clear view of the excavator bucket pulling apart the primary granite core of the tomb. Long structural posts, flat pavement slabs, and carved narrative panels sit jumbled in a large pile. A deeply carved animal panel is clearly visible at the bottom center of the pile.

• Iconography & Symbolism: Captures the exact moment the inner shrine and narrative panels were dismantled. This image serves as a vital forensic record, documenting how the main decorative and genealogical stones were broken apart during the clearance process.

Post 07: Peony and Tree of Life Panel at Jelutong Landfill

• Inventory Code / Filename: Post 07

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Primary Retaining Wall Panel (Floral Narrative Field)

• Descriptive Forensic Analysis: Top-down view of a salvaged rectangular granite slab resting at the landfill. The carving shows deep undercutting and hollowed-out relief work, displaying a large tree trunk bursting into multi-layered floral blooms, with a small pool of rainwater collected in an upper depression.

• Iconography & Symbolism: Documents the Peony / Tree of Life motif, executed with high-level Sun Diao (hollowed relief) craftsmanship. The peony symbolizes nobility, wealth, and honor (Fùguì), serving as a permanent blessing for the family line.

Post 08: Interlocking Granite Pillars and Joinery Blocks at Jelutong Landfill

• Inventory Code / Filename: Post 08

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Central Shrine Frames and Interlocking Balustrade Posts

• Descriptive Forensic Analysis: Horizontal view documenting a pile of long, structural granite pillars salvaged at the landfill. The image shows a square-profile column with an integrated cylindrical insertion peg at one end, alongside vertical border panels carved with low-relief patterns.

• Iconography & Symbolism: Provides forensic evidence of traditional stone carpentry joints. These interlocking pins and sockets allowed the heavy granite pieces to lock together securely, showcasing the advanced engineering skills used to build the monument.

Post 09: Discarded Narrative Panels and Rubble Field at Jelutong Landfill

• Inventory Code / Filename: Post 09

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Inner Retaining Wall Slabs and Boundary Blocks

• Descriptive Forensic Analysis: Wide view showing a field of salvaged granite blocks stacked at the Jelutong landfill, with piles of municipal debris and construction rubble rising in the background. Several large rectangular panels featuring deep-relief animal and floral carvings sit exposed on the dirt.

• Iconography & Symbolism: Documents the final location of the tomb's artistic program. This image shows the scale of the salvaged stonework, where museum-quality carving panels sit discarded alongside modern construction waste.

Post 10: Paired Imperial Civil Badge Panels at Jelutong Landfill

• Inventory Code / Filename: Post 10

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Inner Horseshoe Retaining Wall Lining Slabs

• Descriptive Forensic Analysis: Close-up view of a thick granite block containing two distinct narrative registers separated by a horizontal stone border. Each field displays a bird with long, straight tail feathers flying amidst deeply carved, swirling Lishui waves and cosmic currents.

• Iconography & Symbolism: Verifies the presence of the Second-Rank Civil Imperial Badge (Golden Pheasant / Jin Ji). The straight, parallel-ribbed tail feathers and the imperial wave design match the court insignia of Capitan China Chung Keng Quee, proving that his official rank was carved onto his wife's tomb to project the family's high status.

Post 11: Vertical Border Rebus Panel

• Inventory Code / Filename: Post 11

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Central Headstone Shrine Frame / Vertical Pilaster Lining

• Descriptive Forensic Analysis: A fractured granite structural facing block resting in dirt. The relief work remains clear, displaying a vertical chain of interconnected symbols: an upside-down bat at the top holding a ribbon, a circular cash coin in the center, and a stylized Ruyi or cloud pedestal below.

• Iconography & Symbolism: Documents the classic rebus 「福在眼前」 (Fú zài yán qián / Blessings Before Your Eyes). The upside-down bat represents the arrival of fortune (Fúdào), while the ribbon loops through the eye of the coin to symbolize immediate wealth.

Post 12: In-Flight Avian Relief Fragment

• Inventory Code / Filename: Post 12

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Main Retaining Wall Assembly / Upper Landscape Field Fragment

• Descriptive Forensic Analysis: A close-up of a shattered granite fragment covered in fine sand and dirt. The carving isolates a single bird in full flight, wing feathers individually etched, with its tail extending straight back.

• Iconography & Symbolism: Likely a component of the second-rank civil official badge panels or the landscape crane program, representing freedom of the spirit, longevity, or imperial bureaucratic rank.

Post 13: Dispersed Stone Slab Field

• Inventory Code / Filename: Post 13

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Multi-Tiered Retaining Wall Panels and Pavement Slabs

• Descriptive Forensic Analysis: A wide view of numerous large, thick granite blocks piled along a grassy landfill perimeter. The blocks sit jumbled, with several large square narrative panels facing upward, showing surface mud and water pooling in their carved recesses.

• Iconography & Symbolism: Documents the scale of the salvaged art program. This group highlights how a massive, interconnected stone facade was broken into independent blocks, separating the individual stories from their original structural framework.

Post 14: Smashed Structural Base Sections

• Inventory Code / Filename: Post 14

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Intermediate Terrace Friezes and Foundation Blocks

• Descriptive Forensic Analysis: A view focusing on two long, rectangular horizontal granite panels stacked near rusted metal scrap. The upper stone features a continuous row of figures riding auspicious beasts, while the lower stone retains dirt packed into its deep relief frames.

• Iconography & Symbolism: Preserves the continuous narrative friezes (corresponding to Pre 34). These horizontal bands added a layer of storytelling to the lower terrace walls, celebrating cultural legends and spiritual guardians.

Post 15: Salvaged Wenchang Scroll Finial in Debris

• Inventory Code / Filename: Post 15

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Left-Wing Terminating Boundary Post (Grave Shoulder / Wenchang Scroll)

• Descriptive Forensic Analysis: A vertical shot capturing the massive, spiraling stone scroll finial sitting upside down amidst oil-stained water and crumpled metal sheets. The stepped, shell-like concentric circles match the piece shown in Pre 38 and Misc 01.

• Iconography & Symbolism: The Wenchang scroll or "Grave Shoulder" (墓肩) served to seal the outer edge of the tomb's arms, blocking unwanted environmental elements and keeping positive energy inside the paved courtyard area.

Post 16: Paired Wave and Border Assembly

• Inventory Code / Filename: Post 16

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Left Inner Retaining Wall Panel and Adjoining Frame Post

• Descriptive Forensic Analysis: Two distinct architectural blocks sitting side-by-side on the ground. The left panel shows the deeply undercut Lishui wave formations and swirling cloud lines from the left retaining wall (matching Pre 19). The right pillar contains a vertical alignment of a bat, a coin, and a decorative vase base.

• Iconography & Symbolism: Demonstrates the transition between the tomb's inner narrative walls and its structural frames. The wave carvings represent the cosmic oceans, while the border pillar reinforces the family's prayers for wealth and domestic safety (Ping'an).

Post 17: Forensic Evidence of Iron Joinery

• Inventory Code / Filename: Post 17

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Outer Balustrade Post / Guardian Pillar Base Joint

• Descriptive Forensic Analysis: Close-up of a broken granite post block resting on a fluted stone column section. Protruding from the bottom corner of the block is a thick, heavily rusted, square-profile iron peg or dowel anchor.

• Iconography & Symbolism: Provides direct physical evidence of the tomb's interlocking stone carpentry. Masons used these iron pins inside pre-drilled sockets to anchor heavy balustrades against the hillside, demonstrating high-level engineering.

Post 18: Heavily Sand-Packed Landscape Panel

• Inventory Code / Filename: Post 18

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Right Inner Retaining Wall Panel (Lower Section)

• Descriptive Forensic Analysis: A rectangular granite slab with its relief fields packed with fine sand and construction dust. The lower register displays deep-relief waves, moving up into tree trunks, foliage, and a standing long-legged bird (crane).

• Iconography & Symbolism: Part of the core Landscape Triad (Song He Chang Chun), representing long life, endurance through winter, and ancestral honor. The packed sand highlights the condition of the carvings at the salvage site.

Post 19: Fractured Peony / Tree of Life Masterwork

• Inventory Code / Filename: Post 19

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Main Retaining Wall Panel / Large Decorative Slab

• Descriptive Forensic Analysis: A large square granite block covered in mud and red brick dust. The carving shows a sturdy central tree trunk splitting into detailed, multi-layered floral blooms (peonies), with birds tucked into the side branches.

• Iconography & Symbolism: Documents the traditional Peony / Wealth Panel. The peony symbolizes nobility, status, and high honors (Fùguì), carved with extensive undercutting to create crisp shadow borders across the stone facade.

Post 20: Mud-Filled Wave and Dragon-Carp Panel

• Inventory Code / Filename: Post 20

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Left Inner Retaining Wall Panel (Core Field)

• Descriptive Forensic Analysis: A large square granite block lying flat, with its deep relief cavities filled with mud and dry earth. The carving features a dynamic, coiled water dragon or carp navigating through dense waves and cloud scrolls.

• Iconography & Symbolism: Represents the transformation and protective water motifs of the left retaining wall. In Lingnan traditions, these dynamic patterns protected the burial site from negative spirits while celebrating the family's rise in status.

Post 21: Fractured Landscape Masterwork Field

• Inventory Code / Filename: Post 21

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Right Inner Retaining Wall Panel (Core Field Segment)

• Descriptive Forensic Analysis: A heavily weathered, large rectangular granite slab sitting exposed among stone rubble. Fine grey sand and dried mud pack the relief voids. The surface shows clear evidence of the classical landscape triad elements, with gnarled pine trunks and rocky textures still visible despite surface abrasions from demolition handling.

• Iconography & Symbolism: Part of the central Landscape Triad (Song He Chang Chun and Lu), representing multi-generational family status, resilience through changing seasons, and lasting financial abundance.

Post 22: Horizontal Molding / Step Foundation Element

• Inventory Code / Filename: Post 22

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Intermediate Terrace Base Molding / Courtyard Step Section

• Descriptive Forensic Analysis: A dense, horizontal granite structural block partly buried under rough landfill earth and a piece of discarded plastic sheeting. The exposed lower edge shows a continuous row of carved geometric crenellations or tooth-like blocks, designed to lock into an underneath masonry course.

• Iconography & Symbolism: Functions as a structural and visual transition panel. These thick base courses bounded the flat granite platforms, serving as heavy retaining steps that kept the paved terraces stable against shifting ground pressure.

Post 23: Crisp Avian and Foliage Relief Panel

• Inventory Code / Filename: Post 23

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Main Retaining Wall Panel / Upper Landscape Field

• Descriptive Forensic Analysis: An exceptional, well-preserved close-up of a granite slab under bright sunlight. The deep relief work shows high-level carving skills: a bird with spread wings (matching Post 12) flies near detailed, overlapping leaves and multi-petaled floral blooms that branch across a smooth background field. Dried leaves fill a lower cavity.

• Iconography & Symbolism: Part of the tomb's extensive floral and bird program. In Lingnan folk art, active birds flying among springtime blooms symbolize renewal, family growth, and the flourishing of future generations.

Post 24: High-Contrast Flight Profile Fragment

• Inventory Code / Filename: Post 24

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Main Retaining Wall Assembly / Detail Inset

• Descriptive Forensic Analysis: A sharp macro crop isolating an in-flight bird emblem under direct sunlight, which highlights the crisp chisel lines. The bird is depicted descending with outstretched wings, featuring individually carved primary feathers and a notched tail profile packed with sand.

• Iconography & Symbolism: Represents freedom of the spirit and cosmic alignment. These dynamic aerial figures balanced the heavy stone elements of the tomb, bringing a sense of movement to the permanent granite walls.

Post 25: Masterful Deep-Relief Water Crustacean Panel

• Inventory Code / Filename: Post 25

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Left Inner Retaining Wall Panel / Lower Aquatic Register

• Descriptive Forensic Analysis: A beautifully preserved rectangular relief panel showing a segmented Prawn or Lobster swimming through water. The carver used deep undercutting to elevate the crustacean's ribbed shell, long legs, and tail fans completely away from the background plane.

• Iconography & Symbolism: In Cantonese culinary and linguistic traditions, the prawn (蝦 - Hā) represents laughter, happiness, and joy because its name sounds like a burst of laughter (Xiāhāhā). Placing aquatic creatures on the left retaining wall linked water with continuous family happiness and smooth sailing.

Post 26: Interlocking Water Carp / Dragon-Fish Element

• Inventory Code / Filename: Post 26

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Left Inner Retaining Wall / Circular Medallion Core Fragment

• Descriptive Forensic Analysis: A macro photograph of a stone fragment showing a water fish or dragon-carp navigating dynamic wave lines. The fish features deep-relief curved scales (Yúlín) along its spine and a flaring fin array, with a heavy block of rough stone resting on its upper edge.

• Iconography & Symbolism: Features the Water Carp (鯉魚 - Lǐyú) transforming into a dragon. This emblem stands for determination, family advancement, and continuous abundance (Nian Nian You Yu), celebrating the family's rise in status.

Post 27: Low-Angle Forensic Profile of a Mythical Beast Mask

• Inventory Code / Filename: Post 27

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Transition Pillar Base / Retaining Corner Face

• Descriptive Forensic Analysis: A dramatic, low-angle high-contrast monochrome view looking up at a carved corner block. The stone features a deep, hollowed-out mouth cavity that shapes a protective Tiger Mask (Taotie) or mythical lion head, showing the deep chisel undercutting used by the masons.

• Iconography & Symbolism: Functions as a protective guardian mask. Positioned along the structural corners or pillar bases (corresponding to Pre 36), these heavy animal faces ward off negative environmental influences and protect the sacred core of the courtyard.

Post 28: Playful Southern Lion and Fruit Basket Rebus

• Inventory Code / Filename: Post 28

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Outer Step-Wing Balustrade / Intermediate Wall Panel

• Descriptive Forensic Analysis: A flat, clear macro photograph of a vertical relief block. The carving shows a playful southern Guardian Lion standing on its hind legs, holding a large, ornate silk ribbon banner that loops upward to support an overflowing basket of round fruits (likely pomegranates or peaches) packed with dirt.

• Iconography & Symbolism: A complex combination of traditional blessings. The fruit basket represents a plentiful harvest, while pomegranates (Shíliu) symbolize a prayer for numerous descendants and large family branches (Duōzǐ duōfú), secured under the protection of the guardian lion.

Post 29: Auspicious Flower Vase and Guardian Quadruped

• Inventory Code / Filename: Post 29

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Outer Step-Wing Balustrade / Companion Wall Panel

• Descriptive Forensic Analysis: The companion panel to Post 28, displaying a mirrored layout. A stylized quadruped beast balances on a rocky outcrop, supporting a tall, flaring Flower Vase overflowing with lotus leaves and blooms. The lower leg cavity shows significant damage filled with packed earth.

• Iconography & Symbolism: Combines the symbols for peace and protection. The flower vase (瓶 - Píng) serves as a direct homophone for Peace and Safety (平 - Píng'ān). Paired with a protective beast, it represents a lasting wish for peace and harmony within the family estate.

Post 30: Detailed Aquatic Bird and Lotus Pond Narrative

• Inventory Code / Filename: Post 30

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Lower Terrace Frieze / Horizontal Border Panel Section

• Descriptive Forensic Analysis: A horizontal macro photograph of a narrative panel section, showing moisture marks on the stone. The carving depicts a detailed lotus pond scene: two aquatic birds (ducks or egrets) swim along the bottom register, navigating between tall lotus stems, large seed pods, and blooming petals.

• Iconography & Symbolism: Represents the traditional Lotus Pond Scene (Lánhuā táng). The lotus flower stands for purity, harmony, and elegant integrity. Placed along the lower terrace walls, this peaceful water scene brought balancing energy to the grand stone layout of the mausoleum.

Post 31: Fragmented Monkey / Rebus Pillar Inset

• Inventory Code / Filename: Post 31

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Right Inner Retaining Wall / Rebus Inset Slab

• Descriptive Forensic Analysis: A fractured granite structural block lying flat in loose dirt. The deep-relief cavities are heavily packed with fine sandy loam and construction dust, but the distinct profile of an active monkey climbing down a stylized pine trunk remains highly legible. The rough chisel-marks along the recessed background match the execution details captured in Pre 37.

• Iconography & Symbolism: Documents the salvage state of the "Feng Hou" (封侯) Marquis rebus. This piece served as a permanent visual prayer for the lineage, wishing that future generations would ascend to high noble standing and scholar-bureaucratic rank.

Post 32: Mud-Silted Lotus Pond Frieze

• Inventory Code / Filename: Post 32

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Lower Terrace Retaining Wall Frieze Section

• Descriptive Forensic Analysis: A rectangular horizontal granite frieze panel resting face-up. Heavy mud, silt, and fine sand coat the surfaces, filling the deeply undercut lower register. The carving depicts an active lotus pond ecosystem, featuring blooming petals on the far right, large round lotus leaves on the left, and aquatic birds navigating rolling water currents at the base.

• Iconography & Symbolism: A variation of the traditional Lotus Pond Narrative (corresponding to Pre 34 and Post 30). The lotus represents pure, unpolluted integrity, providing a peaceful, harmonious aquatic frame along the lower masonry boundaries.

Post 33: Multi-Layered Peony Tree Slabs

• Inventory Code / Filename: Post 33

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Main Retaining Wall Panel / Primary Decorative Slab

• Descriptive Forensic Analysis: A large, thick square granite ashlar block sitting exposed next to standing water. Patches of red brick dust and wet mud cling to the stone. The surface shows an extensive tree network branching out into deep, multi-layered floral rosettes, executed with significant undercutting to raise the petals away from the background.

• Iconography & Symbolism: Captures the salvage state of the Peony / Tree of Life Masterwork (matching Post 07 and Post 19). The peony symbolizes nobility and high honor (Fùguì), serving as a permanent blessing of prosperity for the family estate.

Post 34: Sand-Obscured Mythical Frieze Panel

• Inventory Code / Filename: Post 34

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Lower Terrace Retaining Wall Frieze / Horizontal Border Field

• Descriptive Forensic Analysis: A long horizontal block where the central relief field is almost entirely obscured by a thick, uniform layer of dry sand and loose soil. Despite the dirt fill, the distinct curved borders of Ruyi cloud scrolls and the raised heads of chimerical beasts (resembling a Qilin or horse) can be traced running along the baseline.

• Iconography & Symbolism: The continuous Mythical Narrative Frieze (corresponding directly to Pre 34). These horizontal bands depicted legendary figures traveling across the heavens, adding layers of spiritual protection to the lower terrace steps.

Post 35: Fractured Tree of Life Core Slab

• Inventory Code / Filename: Post 35

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Main Retaining Wall Panel / Upper Landscape Field

• Descriptive Forensic Analysis: A massive granite slab showing a clean fracture line along its right edge, resting on gravelly soil. Fine sand packs the deep recesses of a central tree motif that splits into detailed, multi-petaled floral blooms. A large, dark void at the bottom right corner indicates where a portion of the stone base has broken away.

• Iconography & Symbolism: Another critical component of the Peony / Floral Program. The deep undercutting creates sharp shadow outlines that emphasize the blooming branches, representing the growth and flourishing success of the family branches.

Post 36: Water-Silted Lotus Pond Fragment

• Inventory Code / Filename: Post 36

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Lower Terrace Retaining Wall Frieze Section

• Descriptive Forensic Analysis: A long horizontal granite panel section sitting in a puddle of muddy water. The carving displays tall, straight lotus stalks topped with wide leaves and seed pods, with aquatic birds swimming through wave lines across the lower register. Silt settles into the deepest recesses of the water lines.

• Iconography & Symbolism: Documents an additional segment of the continuous Lotus Pond Frieze program, demonstrating how the lower boundary walls were systematically clad in peaceful, harmonious water imagery to balance the heavy stone terraces.

Post 37: Encroached Landscape Base Slab

• Inventory Code / Filename: Post 37

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Right Inner Retaining Wall / Lower Landscape Register Fragment

• Descriptive Forensic Analysis: A large rectangular granite slab partially covered by wild green weeds and tall grass along the landfill edge. Rainwater has pooled inside the deep, winding channels that shape a rocky riverbank landscape, where a long-necked aquatic bird (egret or crane) stands in profile on a lower ledger block.

• Iconography & Symbolism: A foundational piece of the core Landscape Triad (Song He Chang Chun), utilizing the crane and rocky channels to represent long life, resilience, and enduring ancestral memory.

Post 38: Interlocking Stone Carpentry Log Field

• Inventory Code / Filename: Post 38

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Central Shrine Columns, Structural Beams, and Wall Finials

• Descriptive Forensic Analysis: A wide view documenting a dense pile of long, structural granite pillars sitting in muddy rainwater. Prominently centered in the pile is a massive column terminating in a distinct, multi-layered spiraling cone-peg (the Wenchang Scroll / Grave Shoulder finial block matching Pre 38 and Misc 01), showing how the unit was turned upside down during transport.

• Iconography & Symbolism: Provides clear forensic proof of the tomb's interlocking stone joinery. This stepped scroll peg was engineered to slide into a matching mortise socket in the foundation block, structurally anchoring the outer edge of the tomb arms while symbolically trapping positive energy within the courtyard.

Post 39: Fractured Altar Guardian Lion

• Inventory Code / Filename: Post 39

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Altar Platform Guardian Lion / Sanctuary Guardian

• Descriptive Forensic Analysis: A close-up of a carved stone guardian lion lying detached in loose dirt and brick fragments. The upper body retains its detailed folk-art features, including wide-mouthed snarl lines and a moss-stained mane. The lower base section has suffered a catastrophic break, revealing a clean, unweathered crystalline granite fracture face where the lower limbs were sheared away.

• Iconography & Symbolism: The salvage state of an internal Altar Guardian Lion (corresponding to Pre 22). These statues served to guard the core offering area next to the incense burner, keeping negative spiritual influences away from the central headstone shrine.

Post 40: The Hòutǔ (Deity of the Soil) Shrine Stone

• Inventory Code / Filename: Post 40

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Dedicated Companion Deity Shrine (Hou Tu / 后土 Tablet)

• Descriptive Forensic Analysis: A separate, free-standing granite tablet resting against an earthen bank surrounded by green weeds. The stone features a rounded top crest painted with a large red circle and flanked by low-relief ruyi cloud shoulders. The central vertical inscription is deeply cut and highlighted with red pigment, reading: 「鄭宅后土」 (Zhèng zhái Hòutǔ).

• Iconography & Symbolism: This is the dedicated shrine to Hòutǔ (后土), the Deity of the Soil/Earth. In traditional elite burials, a smaller companion tablet is always placed to the side of the main tomb to appease the local land god for occupying the hillside. The inscription translates to "The Deity of the Soil for the Zheng/Zeng Residence," serving as a vital legal and spiritual lease that secured the earth's permission for Madam Foo's eternal resting place.

Post 41: Dislodged Rear Retaining Wall Cloud Crown Finial

• Inventory Code / Filename: Post 41

• Chronological Phase: Post-Demolition (Jelutong Landfill)

• Anatomical / Structural Component: Upper Rear Wall Crest Finial (Hou Shan Emblem Peak)

• Descriptive Forensic Analysis: A large, shaped granite coping block resting at an angle on a clay bank mixed with brick rubble. The cloud formations are carved with smooth, overlapping concentric grooves that remain intact. A bold red painted circular medallion is centered at the top apex. The flat, unweathered structural base of the stone is completely exposed, matching the piece shown intact in Pre 33.

• Iconography & Symbolism: This is the top component of the tomb’s rear axis crown. The red circle represents the sun or a flaming pearl (Baozhu), symbolizing cosmic authority and spiritual light, marking the highest boundary point of honor.

Post 42: Precious Hardwood Coffin Core Fragment

• Inventory Code / Filename: Post 42

• Chronological Phase: Post-Demolition (Grave Site / Crypt Area)

• Anatomical / Structural Component: Subterranean Burial Vault Material (Yin Dwelling Core)

• Descriptive Forensic Analysis: A close-up view of a dense, heavy wedge of dark, reddish-brown wood partially covered in dry sandy soil. The fragment displays thick, tight grain lines consistent with old-growth tropical hardwood (such as Chengal or premium Chinese cedar). Traces of a dark, protective exterior layer or resin coating are visible along the smoother, cut edges.

• Iconography & Symbolism: This fragment matches the elite burial customs described in the 1810 Daniell text (Misc 06), which states that the higher classes utilized coffins made of the "most precious wood, pitched within, and varnished without" to preserve the body within the family sepulchre.

Post 43: Seaward Alignment Assembly Field

• Inventory Code / Filename: Post 43

• Chronological Phase: Post-Demolition (Jelutong Landfill Coastal Edge)

• Anatomical / Structural Component: Complete Retaining Facade and Balustrade Field

• Descriptive Forensic Analysis: A wide view documenting the main decorative and structural granite blocks laid out on the landfill surface, with the Penang strait, shipping vessels, and the distant mainland coastline visible in the background. Prominently displayed face-up are the large Peony Tree panels, the Imperial Civil Badge slabs, and long, rectangular structural pillars.

• Iconography & Symbolism: Illustrates the true scale of the tomb's artistic program. Piled along the coast, this collection shows how a massive, unified stone facade was dismantled into independent blocks, separating the individual stories from their original structural framework.

Post 44: Mixed Rubble and Structural Post Field

• Inventory Code / Filename: Post 44

• Chronological Phase: Post-Demolition (Jelutong Landfill Core)

• Anatomical / Structural Component: Pavement Foundations, Support Beams, and Core Fill Blocks

• Descriptive Forensic Analysis: A wide view showing numerous long, square-profile structural granite posts and foundation blocks jumbled together on a large pile of municipal waste, blue plastic sheets, and timber scraps. The pieces show minor chips and surface dust from transport but remain physically whole.

• Iconography & Symbolism: Documents the final location of the tomb's structural framing. These plain, heavy columns were the internal bones of the terraced architecture, engineered to hold up the flat granite platforms and manage the weight of the hillside.

Post 45: Master Database Archive Profile

• Inventory Code / Filename: Post 45

• Chronological Phase: Post-Demolition (Jelutong Landfill Coastal Edge)

• Anatomical / Structural Component: Complete Retaining Facade and Balustrade Field

• Descriptive Forensic Analysis: A duplicate high-resolution baseline view matching Post 43, capturing the final arrangement of the primary carving slabs next to the sea. The bright daylight clearly shows the deep undercutting of the lion-and-basket rebus panels, the vertical border blocks, and the thick ashlar joints.

• Iconography & Symbolism: Serves as the final closing record for the master catalog. This clear view of the discarded pieces highlights the historical value of this entire photographic archive, which now stands as the definitive database for a lost masterpiece of Lingnan diaspora architecture.

III. Master Archaeological Index: Summary Table of the Foo Teng Nyong Photo  Archive

Inventory Code	Chronological Phase	Core Structural / Anatomical Component	Primary Iconography, Text, or Rebus	Research Value & Forensic Notes
Misc 01	Reference / Spliced	Right-Wing Terminating Post (Grave Shoulder)	Wenchang Scroll (Coiled water current motif)	Shows structural transition from intact state to landfill salvage.
Misc 02	Context Map	Macro Landscape Topographical Grid	Spatial relationship of family graves (Fettes Park)	Confirms her Southwest tomb faces her husband's Northeast tomb along a shared axis.
Misc 03 / 04	Reference Portrait	Qing Dynasty Court Dress Badges	2nd-Rank Civil Official Badge (Golden Pheasant)	Historical portrait verifying her husband's imperial rank mirrors the tomb's carvings.
Misc 05	Context Chart	Later Heaven Bagua Compass Chart	Gen-to-Kun (坐艮向坤) Orientation Vector	Maps the earth-to-earth compass corridor used to calculate local alignment.
Misc 06	Reference Print	1810 Daniell Aquatint ("Chinese Tomb")	Pure Lingnan Three-Tiered Terraced Mausoleum Type	Serves as the primary historical control; proves the design is an elite Cantonese style.
Pre 01	Pre-Demolition	Semicircular Court Assembly (Mingtang)	Armchair / Horseshoe Layout Layout (Luoxuan)	Frontal overview establishing the complete structural footprint before clearance.
Pre 02	Pre-Demolition	Flat Granite Paving / Terrace Floor Platforms	Complete absence of organic earthen grave mound	Confirms the rare, flat-roofed stone crypt structure typical of elite Lingnan styles.
Pre 03	Pre-Demolition	Right Lateral Step-Wings & Tiering	Angled retaining walls stabilizing the hill slope	Captures the macro architecture and slope integration before dismantling.
Pre 04	Pre-Demolition	Right Step-Wing & Low Balustrades	Fitted granite ashlar joints and pitched floor lines	Documents the surface engineering designed to guide rain runoff into the courtyard.
Pre 05	Pre-Demolition	Central Headstone Shrine (Mu Bei) Assembly	Miniature palace/temple facade with dragon pillars	Human scale reference photo showing the center core before damage.
Pre 06	Pre-Demolition	Left Inner Retaining Wall & Dragon Pillar	High-relief Coiled Dragon and Altar Guardian Lion	Documents the detail and physical depth of the inner shrine carvings.
Pre 07	Pre-Demolition	Primary Inscription Face & Offering Table	Central genealogical text column in red pigment	Telephoto view capturing the operational layout of the sacrificial altar.
Pre 08	Pre-Demolition	Headstone Tablet Face (Mu Bei)	Posthumous honorifics 「愨慈」 & Titled 「夫人」	Clear macro record of her elite matriarchal title and the erection date (1884).
Pre 09	Pre-Demolition	Right Epigraph Column	Compass coordinates: 坐艮向坤 (Gen-to-Kun Axis)	Documents the text mapping the tomb to the Dipper and Well lunar mansions.

Inventory Code	Chronological Phase	Core Structural / Anatomical Component	Primary Iconography, Text, or Rebus	Research Value & Forensic Notes
Pre 10	Pre-Demolition	Frontal Panorama View	Multi-tiered symmetrical layout from front edge	Fisheye panoramic view documenting the full scale of the open courtyard.
Pre 11	Pre-Demolition	Main Retaining Wall Assemblies & Wings	Intact structural walls under tropical overgrowth	Proves the heavy granite masonry prevented soil erosion for over 130 years.
Pre 12	Pre-Demolition	Central Shrine Frame & Offering Table	Miniature stone tile roof and dragon wrap columns	Close-up of the ceremonial gateway linking the living with the ancestors.
Pre 13	Pre-Demolition	Paved Courtyard Basin (Mingtang)	Interlocking flat granite paving slabs	Captures a heritage gathering, illustrating the large social scale of the open court.
Pre 14	Pre-Demolition	Central Shrine Recess & Left Retaining Wall	Continuous narrative relief program panels	Overhead view of researchers documenting the inner wall details.
Pre 15	Pre-Demolition	Upper Terrace Paving & Curved Balustrades	Uniformly laid pavement blocks pitched for drainage	Tracks the water management layout across the middle levels.
Pre 16	Pre-Demolition	Right Inner Retaining Wall Panel	Landscape Triad (Pine tree, crane, and forest stag)	Telephoto detail showing the high-level undercutting used in the artwork.
Pre 17	Pre-Demolition	Left Inner Retaining Wall Panel	Mythical water program (Swirling clouds and waves)	Balances the right wall's land theme with traditional sky and sea patterns.
Pre 18	Pre-Demolition	Left Panel, Dragon Pillar, & Altar Corner	Fine relief lines covered by hanging tropical vines	Clear view of the relationship between the inner panels and the shrine pillars.
Pre 19	Pre-Demolition	Left Inner Retaining Wall (Wave Detail)	Deeply undercut Lishui wave patterns	High-contrast sunlight view highlighting the master craftsmanship of the texturing.
Pre 20	Pre-Demolition	Right Retaining Wall & Shrine Interface	Monkey hanging from pine branch rebus (「封侯」)	Documents the complete landscape program and wordplays while fully intact.
Pre 21	Pre-Demolition	Full Right Retaining Wall View	Rebus combo: Long life, official salary, and rank	High-resolution close-up of the complete right-hand storytelling wall.
Pre 22	Pre-Demolition	Altar Platform Corner (Left Ledge)	Small folk-art style Stone Guardian Lion (Shi Shi)	Macro view of a weathered altar guardian showing natural lichen growth.
Pre 23	Pre-Demolition	Outer Boundary Wall Panel	Coiled Water Carp (鯉魚 - Lǐyú) Medallion	Captures the transformation symbol representing family advancement and wealth.
Pre 24	Pre-Demolition	Lower Courtyard Boundary Corner	Vertical gate post topped with a seated outward lion	Marks the physical entry threshold of the tomb's outer horseshoe arms.
Pre 25	Pre-Demolition	Right Step-Wing Balustrade Wall	Low-relief story borders topped with a guardian lion	Illustrates the structured, geometric design of Cantonese tomb outer wings.
Pre 26	Pre-Demolition	Outer Step-Wing Relief Slab Face	Detailed animal climbing down a gnarled tree trunk	Close-up documenting how the folk-art stories extended to the exterior walls.
Pre 27	Pre-Demolition	Lower Terrace Balustrade Railing	Outward lion post alternating with a lotus/peach cap	Tracks the terminal boundary markers that seal the courtyard edges.
Pre 28	Pre-Demolition	Complete Multi-Tiered Terraced Facade	Clear view of the full three-tiered stonework	Excellent documentation of the entire structure clear of jungle vegetation.

Inventory Code	Chronological Phase	Core Structural / Anatomical Component	Primary Iconography, Text, or Rebus	Research Value & Forensic Notes
Pre 29	Pre-Demolition	Central Shrine & Balanced Wall Slabs	Symmetrical land-themed and water-themed panels	Confirms the balanced layout of the motifs surrounding the headstone core.
Pre 30	Pre-Demolition	Upper Rear Retaining Wall Center top	Mirrored birds facing a central red sun medallion	Documents the crowning panel mounted at the highest point of the tomb axis.
Pre 31	Pre-Demolition	Upper Rear Wall Central Accent Panel	Two birds facing a sun disc framed by Ruyi clouds	Detailed elevation showing the imperial favor motifs on the rear center.
Pre 32	Pre-Demolition	Rear Boundary Wall Centerpiece and Crest Assembly	Cloud-carved crown connecting with the upper hill	Shows the transition point where the engineered stone platform meets bedrock.
Pre 33	Pre-Demolition	Rear Wall Crest Top Apex	Concentric cloud grooves surrounding a red sun disc	Detailed close-up of the red medallion symbolizing cosmic light and authority.
Pre 34	Pre-Demolition	Lower Terrace Retaining Wall Frieze	Continuous row of figures riding chimerical beasts	Documents the long horizontal narrative band running across lower masonry blocks.
Pre 35	Pre-Demolition	Vertical Balustrade Pillar Face	Scholar in bureaucrat robes holding a ruyi scepter	Vertical macro isolating a permanent spiritual attendant carved on a post.
Pre 36	Pre-Demolition	Intermediate Level Transition Post	Complex octagonal post face with a bat, coin, and vase	Highlights the use of interlocking stone sections and multiple rebuses.
Pre 37	Pre-Demolition	Right Inner Retaining Wall (Detail Crop)	Monkey climbing a tree trunk (「封侯」 Marquis pun)	Clear, clean record of the chisel work and details of the animal artwork.
Pre 38	Pre-Demolition	Left-Wing Terminating Boundary Wall	Massive stone-sculpted spiraling step cone finial	Close-up of the heavy "Grave Shoulder" designed to trap energy inside the court.
Pre 39	Pre-Demolition	Intermediate Balustrade Post Cap	Tapered lines resembling a lotus bud or peach	Documents the alternating life and purity symbols along interior railings.
Pre 40	Pre-Demolition	Outer Boundary Railing Accent Post	Multi-faceted, sharp geometric polyhedral cap	Captures a rare use of sharp angles contrasting with organic reliefs.
Post 01	Post / Site	Core Courtyard Platform area	Dislodged, broken structural posts and floor slabs	Documents the initial dismantling of the interlocking stone layers by excavators.
Post 02	Post / Site	Complete Topographical Footprint	Bare earth tiers running down to the valley stream	Confirms the total removal of the stone walls and the loss of the landscape axis.
Post 03	Post / Site	Macro Hillside Slopes & Graded Grounds	Excavated clay slope set against town high-rises	Records the large size of the property after it was prepared for redevelopment.
Post 04	Post / Site	Subterranean Vault Fill zone	Piles of unrefined, rough backing stone rubble	Provides physical evidence of the crude rubble backing used behind the granite facades.
Post 05	Post / Site	Semicircular Earthworks Overview	Graded dirt terraces mapping the original footprint	Top-down view capturing the final phase of clearing before construction.
Post 06	Post / Site	Inner Core Vault area	Disassembled structural posts and narrative slabs	Captures the excavator bucket pulling apart the primary decorative stone core.
Post 07	Post / Landfill	Main Retaining Wall Panel	Peony Tree / Tree of Life Panel (Wealth program)	Large salvaged block at the landfill showing deep undercutting and mud accumulation.

Inventory Code	Chronological Phase	Core Structural / Anatomical Component	Primary Iconography, Text, or Rebus	Research Value & Forensic Notes
Post 08	Post / Landfill	Central Shrine Framing Posts	Columns featuring integrated cylindrical insertion pegs	Forensic proof of stone carpentry joints (interlocking pins and sockets).
Post 09	Post / Landfill	Salvaged Masonry Field	Multiple rectangular narrative and border slabs	Captures the scale of the discarded stonework mixed with modern construction waste.
Post 10	Post / Landfill	Inner Retaining Wall Lining Block	Paired Golden Pheasants over Lishui waves	Confirms the presence of the Second-Rank Civil Imperial Badge panels.
Post 11	Post / Landfill	Central Shrine Face Frame	Rebus: 「福在眼前」 (Bat, Coin, & Ribbon chain)	Fractured border block showing the survival of the main entry rebuses.
Post 12	Post / Landfill	Upper Landscape Field Fragment	Single detailed bird in full downward flight	Isolates a bird emblem feather pattern from the main narrative slabs.
Post 13	Post / Landfill	Multi-Tiered Retaining Wall Field	Numerous jumbled square panels along a grass bank	Shows the condition of the collection exposed to water pooling in the landfill.
Post 14	Post / Landfill	Intermediate Terrace Frieze Blocks	Horizontal continuous bands of mythological figures	Tracks the condition of the lower narrative bands (corresponds to Pre 34).
Post 15	Post / Landfill	Left-Wing Terminating Boundary Unit	Stepped spiraling stone scroll finial upside down	Verifies the rescue location of the heavy "Grave Shoulder" scroll pin.
Post 16	Post / Landfill	Left Inner Retaining Wall Panel base	Lishui waves paired with a bat and coin border post	Illustrates how the inner narrative walls joined with their structural frames.
Post 17	Post / Landfill	Outer Balustrade Post Foundation	Thick, heavily rusted square iron dowel anchor	Direct physical proof of the iron pins used to brace the walls against soil pressure.
Post 18	Post / Landfill	Right Inner Retaining Wall Panel	Crane and foliage registers packed with fine sand	Shows the lower section of the Landscape Triad covered in construction dust.
Post 19	Post / Landfill	Large Decorative Retaining Block	Central tree trunk bursting into multi-layered peonies	Shows a cracked wealth panel with mud and brick dust covering the flowers.
Post 20	Post / Landfill	Left Inner Retaining Wall Core	Coiled water dragon or carp navigating waves	Captures the core transformation panel of the left wall packed with wet mud.
Post 21	Post / Landfill	Right Inner Retaining Wall Core	Weathered pine tree trunk and rocky outcrops	Records surface scratches on the landscape panels from demolition handling.
Post 22	Post / Landfill	Intermediate Terrace Base Molding	Horizontal block with geometric tooth-like joints	Documents the heavy retaining steps used to lock the floor platforms together.
Post 23	Post / Landfill	Upper Landscape Retaining Panel	Intact bird in flight among overlapping foliage	Clear view of the carving depth under sunlight, with dried leaves in the cavities.
Post 24	Post / Landfill	Main Retaining Wall Assembly detail	Descending bird profile with individually etched feathers	Macro crop preserving the fine chisel marks used for animal textures.
Post 25	Post / Landfill	Left Inner Retaining Wall (Lower register)	Deep-Relief Water Prawn / Lobster panel	Highlights the Cantonese wordplay for happiness (Xiāhāhā) via aquatic imagery.
Post 26	Post / Landfill	Circular Medallion Core Fragment	Scaled dragon-carp swimming upstream through waves	Close-up of a broken fish badge panel showing curved scale textures.

Inventory Code	Chronological Phase	Core Structural / Anatomical Component	Primary Iconography, Text, or Rebus	Research Value & Forensic Notes
Post 27	Post / Landfill	Pillar Base / Retaining Corner Face	Protective Tiger Mask (Taotie) or lion head	Low-angle, high-contrast monochrome view of a hollowed structural corner mask.
Post 28	Post / Landfill	Outer Step-Wing Balustrade Panel	Standing lion holding a banner with a fruit basket	Rebus representing a plentiful harvest and numerous family branches (Duōzǐ).
Post 29	Post / Landfill	Outer Step-Wing Companion Panel	Quadruped beast supporting a tall flower vase	Rebus representing peace and safety (瓶 sounds like 平 / Ping'an).
Post 30	Post / Landfill	Lower Terrace Frieze Section	Lotus pond scene with swimming ducks and seed pods	Documents a horizontal border section celebrating purity and elegant integrity.
Post 31	Post / Landfill	Right Inner Retaining Wall Rebus inset	Active monkey climbing a pine trunk panel	Confirms the salvage state of the "Feng Hou" Marquis rebus block (corresponds to Pre 37).
Post 32	Post / Landfill	Lower Terrace Retaining Wall Frieze	Silted lotus pond program register	Displays an additional segment of the continuous aquatic border panels covered in mud.
Post 33	Post / Landfill	Main Retaining Wall Panel	Multi-layered peony rosette clusters on branches	Captures a salvaged wealth panel sitting next to standing landfill water.
Post 34	Post / Landfill	Lower Terrace Retaining Wall Frieze	Sand-packed registers with chimerical beast heads	Shows a continuous mythical narrative band with its cavities filled with soil.
Post 35	Post / Landfill	Upper Landscape Field Retaining Block	Detailed floral blooms with a broken lower base corner	Identifies a fractured tree panel showing a clean, unweathered break line.
Post 36	Post / Landfill	Lower Terrace Retaining Wall Frieze	Lotus stalks, seed pods, and swimming birds	Shows an additional segment of the lotus pond frieze sitting in a muddy puddle.
Post 37	Post / Landfill	Right Inner Retaining Wall Base	Rocky riverbank with a standing crane/egret profile	Rainwater pooled inside the deep landscape channels along the landfill edge.
Post 38	Post / Landfill	Structural Pillar Pile Core	Long columns with an upside-down Wenchang Scroll	Documents a pile of beams, showing the heavy insertion peg of the scroll post.
Post 39	Post / Landfill	Altar Platform Guardian Statue	Moss-stained lion body with sheared lower limbs	Captures the broken state of an internal altar guardian statue (corresponds to Pre 22).
Post 40	Post / Landfill	Dedicated Companion Deity Shrine	「鄭宅后土」 (Hòutǔ / Deity of the Soil) Tablet	Captures the separate land god shrine stone that stood next to the main tomb.
Post 41	Post / Landfill	Upper Rear Wall Crest Finial block	Cloud-carved coping stone with a red sun disc	Displays the top coping block of the rear axis crown resting on a rubble bank.
Post 42	Post / Site	Subterranean Burial Vault Core	Wedge of dense, dark reddish-brown hardwood	Fragment of the old-growth coffin core, matching the elite burial descriptions.
Post 43	Post / Landfill	Complete Salvaged Facade Array	Peony panels and rank slabs laid out by the sea	Wide view showing the collection array with the Penang strait in the background.
Post 44	Post / Landfill	Mixed Rubble & Structural Pillars	Long square-profile beams on a pile of municipal waste	Documents the final location of the internal framing columns used to brace the terraces.
Post 45	Post / Landfill	Complete Salvaged Facade Array	Duplicate baseline view of the collection by the sea	Final database image showing the deep undercutting of the panels in bright daylight.
